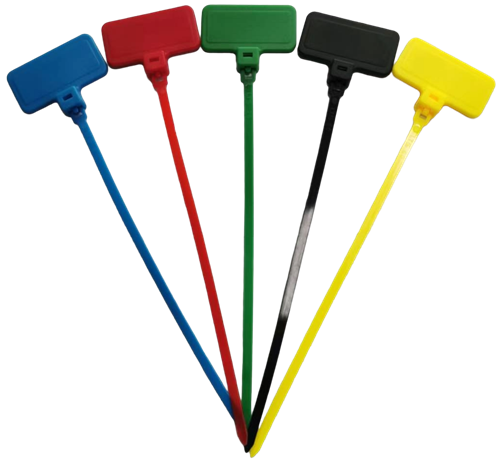

ABS RFID Cable Tie with Release Lever
- Side-press release lever: deliberate, intentional unlocking without tools — not accidental
- Nylon 66 strap relocks automatically after release — fully reusable over the asset lifecycle
- Dual-frequency support: UHF 915 MHz and HF 13.56 MHz on the same physical platform
- Custom chip, colour, surface marking (laser/silk-screen), and EPC/NDEF encoding per order
ABS RFID Cable Tie — Features
A split-nylon tie opens whenever someone pulls the two strap ends apart — a perfectly valid design for cycling inventory, but a problem when a release event should be logged or controlled. This tag introduces a physical step into the process: the lever must be actively pressed before the strap will move. That extra action is small enough to be performed in seconds, but significant enough that it does not happen by accident and leaves a clear answer to the question of whether a tag was removed. It also supports environments where both UHF and NFC infrastructure coexist in the same facility — maintenance technicians scanning with smartphones and fixed UHF readers at dock doors can both read from the same tag population.
ABS RFID Cable Tie — Customization
ABS RFID Cable Tie — Specifications
| Head Size | 31 × 72 × 28 mm |
|---|---|
| Strap Length | 282 mm (customizable) |
| Material | ABS head + Nylon 66 strap |
| Release Mechanism | Side-press lever (tool-free, reusable) |
| UHF Chips | Impinj H9, NXP U8, U9, M4, M5 |
| HF Chips | FM1108, NXP S50, Ultralight, Ultralight-C, ICODE SLI-X, NTAG213/215/216 |
| UHF Frequency | 915 MHz |
| HF Frequency | 13.56 MHz |
| UHF Read Range | 0–5 m |
| HF Read Range | 0–5 cm |
| Protocol | ISO 18000-6C / ISO 14443A / ISO 15693 |
| Unit Weight | 11.2 g |
| Operating Temp | -10 °C to +65 °C |
| Storage Temp | -10 °C to +75 °C |
| Packaging | 50 pcs / bag, 1,000 pcs / box (12 kg/box) |
| Data Retention | 10 years; 100,000 write cycles |
| MOQ | 500 pcs |
ABS RFID Cable Tie — FAQ
-
The split nylon tie separates the strap at the head, which is ideal for opening cable looms or bundles flat. The release lever tie keeps the strap intact — pressing the lever disengages the ratchet, allowing the strap to slide out smoothly. This is better for single-cable or equipment-handle applications where you want a deliberate, auditable unlock action rather than a full strap separation.
-
Yes. The Nylon 66 strap is electrically non-conductive and rated for sustained contact with cable insulation. It is widely used for tagging electrical panels, switchgear, and network distribution equipment. Confirm operating temperature requirements against your specific environment.
-
The standard strap is 282 mm. Custom lengths are available — specify the total strap length needed when placing your order, with a minimum of 500 pcs per custom length variant.
-
HF options include MIFARE Classic (FM1108, NXP S50), MIFARE Ultralight / Ultralight-C (for cost-sensitive NFC applications), ICODE SLI-X (for ISO 15693 library and supply chain systems), and NTAG213/215/216 for general NFC smartphone scanning. If your system uses a specific HF standard, share the reader platform and we will confirm the correct chip.
-
The ABS lever mechanism is rated for a minimum of several hundred open/close cycles under normal operating conditions. The Nylon 66 strap material is resistant to fatigue and maintains tensile strength well beyond this cycle count. For high-frequency cycling applications (daily re-tagging), contact us for fatigue test data on the specific strap width you intend to use.
